Building a GDB stub for a Virtual Machine Monitor (VMM)

This post talks about how the GDB stub has been adapted to be used in a VMM. The VMM is ToroV (see https://github.com/torokernel/torov). ToroV is a kernel in user space that allows the deployment of applications as Virtual Machines. Applications request services from the OS by using hypercalls that the VMM catches. For example, to open a file, the application triggers the open hypercall, the ToroV catches the hypercall, it serves it and, finally, it returns the control to the guest. On way to debug these applications is to add a GDB stub to the VMM that is used to control the guest. If you want to know more about the GDB stub, please check the following post

The GDB stub in the VMM allows debugging applications that are deployed by using ToroV. Roughly speaking, the GDB stub is the interface between a GDB client and the underlying debugging hardware. In one side, the GDB stub interacts with a GDB client, e.g., gdb, to set breakpoints, to read/write registers or to execute step-by-step. In the other side, the GDB stub interacts with the underlying hardware/hypervisor to implement these features. QEMU includes a built-in GDB stub that allows to debug guests. You can configure the stub to listen on a TCP port to which the GDB client connect to. On that port, the stub gets commands like "breakpoint main", "continue", to control the execution of the guest.

The GDB stub runs in the VMM, i.e., as a part of a user's process in the host. The GDB stub sets breakpoints by replacing the first byte of the instruction with the INT3 opcode. In addition, we need to tell KVM that the debugging interruptions must trigger a VMEXIT. To do this, we need to set the kvm_guest_debug structure by using the KVM_SET_GUEST_DEBUG to the corresponding VCPU. The following snip of code shows this:

ret := fpIOCtl(vcpu.vcpufd, KVM_SET_GUEST_DEBUG, @debug);

The structure kvm_guest_debug is defined as follows:

kvm_guest_debug = record
  control: DWORD;
  pad: DWORD;
  debugreg: array[0..7] of QWORD;

By setting this, the INT3 and INT1 triggers a KVM_EXIT_DEBUG. In the following lines, we can see how we identify the reason for the VMEXIT. Depending on the exit reason, we inform the GDB stub that either a breakpoint or an step have been reached:
debugexit := pkvm_debug_exit_arch(@guestvcpu.run.padding_exit[0]);

if debugexit^.exception = 3 then
  BPHandler(@guestvcpu) // handler a breakpoint
  StepHandler(@guestvcpu); // handler an step

The debugexit variable is a pointer to a kvm_debug_exit_arch structure, which is defined as follows:

kvm_debug_exit_arch = record
    exception: DWORD;
    pad: DWORD;
    pc: QWORD;
    dr6: QWORD;
    dr7: QWORD;

The GDB stub that ToroV includes is similar to the built-in GDB stub in Qemu. The user configures it by setting in which port the gdb stub listens for new connections from gdb clients.

Sunday, April 25, 2021

Testing Toro unikernel by using Travis-CI

In this brief post, we present how we automate the testing of torokernel repository by using travis-ci. The tests require to set a host with KVM/QEMU and microvm enabled together with virtio-fs and virtio-vsock. This is not possible by using travis-ci VM, instead, it is necessary to use a remote host to launch the tests. In this post, we overview how tests are implemented in Toro and the challenges we face to deploy them in a remote host.

In Toro, tests are stored in the torokernel/tests directory and test the behavior of the units interface with respect to the specification. These tests are triggered when someone pushes to a branch and allow to quickly verify if the new commit is introducing a new bug or a performance regressions. Tests are split into folders depending on the unit that the test tests.

There are two types of tests: benchmarking and correctness. The benchmarking tests test the booting and kernel initialization time. The main goal is to avoid committing something that could impact in the time that toro takes to boot or initialize the kernel. The correctness tests test that the behavior of the different units interface corresponds with the specification. Also, they test corner cases of some APIs.

Tests are programs that are compiled within torokernel. They run several tests, and exit with either success or failure. This is gathered by the travis job that informs the user who launched the tests. Tests require to run as a KVM/QEMU and by using the microvm machine. This is not possible with current travis infrastructure. It is thus necessary to run the tests in a remote machine with KVM/QEMU installed. To do this, the travis-ci sshes to a remote machine in which it clones the corresponding repository and launches the tests. To setup this, it is necessary that the travis machine contains the private key that allows to ssh to the remote machine. This is done by encrypting the private key by using travis. Then, when the job is launched, travis descripts the private key and then it sshes to the remote machine that contains the public key.

We use as a remote host a s1-2 host in OVH. This host costs 3.5 dolar/month and allows us to install KVM. It has only 1 VCPU and 8 Gb of memory. Before the host can be used, it is necessary to install all the required dependencies, e.g., KVM, QEMU, socat, virtio-fs, etc. This is done by the script at https://github.com/torokernel/torokernel/blob/master/ci/prepare_host.sh. You can use it also to prepare a debian-10 host to compile and deploy toro microvm guest.


Wednesday, March 31, 2021

Habemus built-in GDBStub!

In this post, we present the built-in gdbstub that has been developed in the last three months. The gdbstub enables a user to connect to a Toro microVM instance for debugging.

One way to debug an Operating System or a unikernel that is using the QEMU built-in gdbstub. This does not require any instrumentation in the guest and works well when only QEMU is used. However, the QEMU built-in gdbstub does not work well when using KVM and the microvm machine (https://forum.osdev.org/viewtopic.php?f=13&t=39998). For example, software breakpoints and hardware breakpoints are not correctly caught. Another way to debug a guest is to include a gdbstub in the kernel or unikernel. This is the approach that Linux follows and the approach that Toro microVM follows too.

When a kernel includes a gdbstub, it is possible to debug it independently of the Virtual Machine Monitor (VMM), e.g., QEMU, firecracker. This only requires a way to connect the gdb client with the gdbstub, i.e., serial port or any other device. In our case, the communication between the gdb client and the gdbstub is based on the virtio-console device. QEMU is used to forward the serial port to a tcp port to which the gdb client connects.

The gdbstub implements the GDB remote protocol to talk with a gdb client (see https://www.embecosm.com/appnotes/ean4/embecosm-howto-rsp-server-ean4-issue-2.html#sec_exchange_target_remote). This allows a gdbclient to set breakpoints and execute step-by-step. However, the current implementation does not support the pause command, which remains future work.

The gdbstub interfaces between the gdbclient and the underlying debugging hardware. The x86 architecture enables programmers to set breakpoints and execute step-by-step. In the following, we explain how the gdbstub uses these features.

To set a breakpoint, the gdbstub simply replaces the value of the first byte of an instruction in memory by the hexadecimal value 0xcc. When the processor executes this instruction, it triggers the interruption number 3, i.e., INT3. The gdbstub handles this interruption by informing the gdb client that the program has catched a breakpoint.

The gdb client reads the value of the Instruction Pointer (RIP) to figure out which breakpoint corresponds to, and then, informs the end-user. At this point, the user can continue the execution with the “continue” command or execute the next instruction by using the “step” command.

In the interruption handler, the value of the RIP register in the stack corresponds with the RIP_BREAKPOINT + 1. This prevents from triggering the same breakpoint when returning from the interruption.

The “step” command set the processor in “step” mode. The single step mode is controlled by a flag in the RFLAG register. In this mode, the processor triggers the interruption number 1 just after each instruction has executed. During the execution of the interruption handler, this flag is disabled and it is only enabled when returning from the interruption. In step mode, the execution is instruction by instruction. Thus, to execute a line of code, several executions may be needed until the next pascal line is reached. Note that the current implementation does not use the x86 breakpoint registers to set breakpoints.

To allow a smoothly debugging experience, the communication between the gdbclient and the gdbstub must be fast. In this path, two elements are crucial: the serial driver in the guest and the forwarding of such information to a tcp port. The microvm machine only enables one legacy serial port. When using the legacy serial port, the communication relies on a single byte of information. QEMU packages this byte into a single tcp packet and sends it to the client. This results in a poor communication in term of performance. Instead, we use the virtio-console device to communicate the gdbclient and the gdbstub. This has two benefits: first the gdbclient can send chunks of data instead of single bytes. Second, QEMU handles the tcp communication more efficiently, for example, by packaging more data into each packet. In the overall, the use of virtio-console results in an improvement of the performance. To avoid nested interruption in the gdbstub interruption handler, the current driver is implemented by relying on a pooling mechanism.

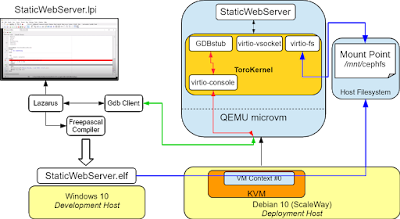

The resulting software architecture is illustrated in the following figure:

The user builts the application in the development host, which is a Windows 10 host with Freepascal and Lazarus. We use Lazarus as front-end for the gdbclient. This allows users to debug applications by using a graphical interface. The binary of the application is transferred to the deployment host in which the VM within the application is created. This host is a Debian 10 and the application is deployed as a KVM/QEMU microvm guest. The binary of the application is stored in a cephs cluster that is shared among other hosts. When the VM is instantiated, QEMU waits until the gdb client connects to the port tcp:1234. When this happens, the guest continues to execute (watch the whole flow at https://youtu.be/AdygWtGQFPU).

In this post, we presented the built-in gdbstub to debug applications in Toro microVM. When included in an application, this module allows communication to a gdbclient thus allowing users to set breakpoints, execute step-by-step and inspect the value of variables.


- https://sourceware.org/gdb/onlinedocs/gdb/Notification-Packets.html#Notification-Packets

- https://eli.thegreenplace.net/2011/01/27/how-debuggers-work-part-2-breakpoints

- https://github.com/mborgerson/gdbstub
